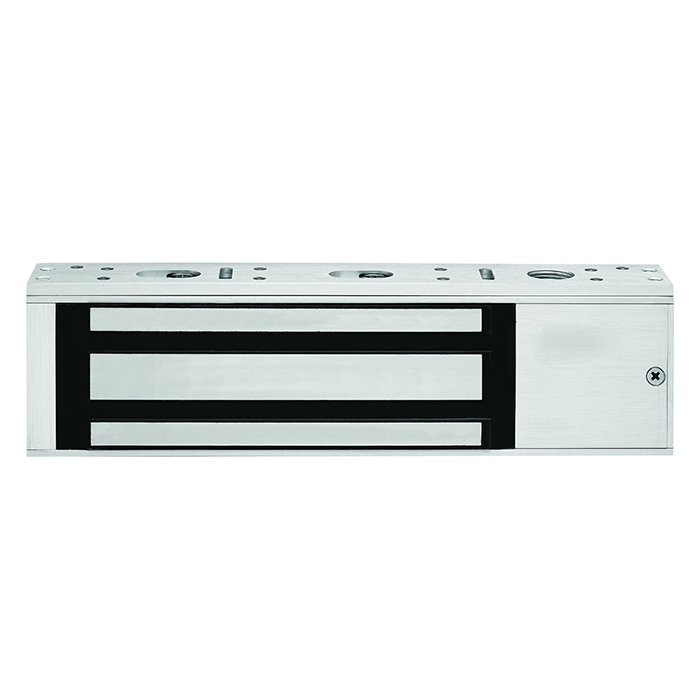

Trimec Z8 SG Electromagnetic Lock
Description
The Single Series Electromagnetic Locks (maglocks/mag locks), operate with holding forces from 250kg up to 580kg. Covering a range of applications the Z4 and Z8 Electromagnets are ideal for applications from Standard doors through to high use commercial swing doors.
With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.
Key Features<\strong>
Hall/Bond Monitoring<\strong>
This indicates that the lock is powered and that the armature plate is in position and magnetically bonded (it monitors if the magnet is locked)
Reed switch monitoring<\strong>
An integrated reed switch monitors the door position separately (it monitors the position of the door)
Applications<\strong>
Standards and Compliance<\strong>
Z8 Magnet<\strong>
Holding Force550kg - 580kg
Dimensions(L)266 x (H)72 x (D)40 mm
Voltage12Vdc/ 24Vdc ±10%
Current512mA @ (12Vdc) 256mA @ (24Vdc)
MonitoringHall-Effect/Bond sensing & Reed Switch
Operating Temperature-10 to 55 Degrees
Operating Humidity0 - 95%
Specification Statement<\strong>
Holding force is measured directly between armature and magnet, holding force on the door may vary depending on the leverage created. The Single Series Electromagnetic Lock should be constructed in an aluminium case with heavy duty electromagnet. The range only operates in fail safe mode and relies on a secondary lock or battery backup system. In some cases the magnet armature plate pivots to accommodate door drop. The lock needs to be equipped with inch smart electronicsinch that have zero residual magnetism, (instantaneous release). This is crucial for correct operation.
Details
-
Finish:Silver
-
Brand:Trimec
-
Please Note:This is a non-returnable product. By adding this product to your cart you agree to these terms.
