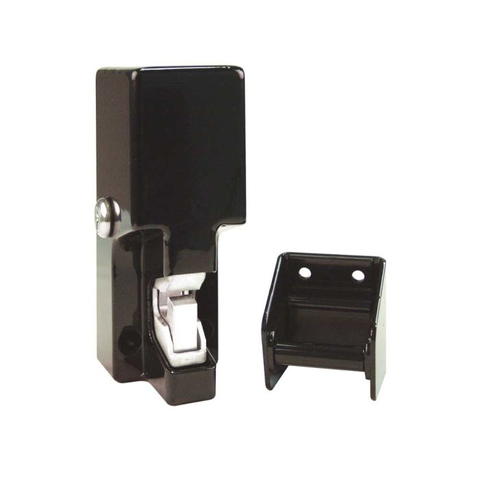

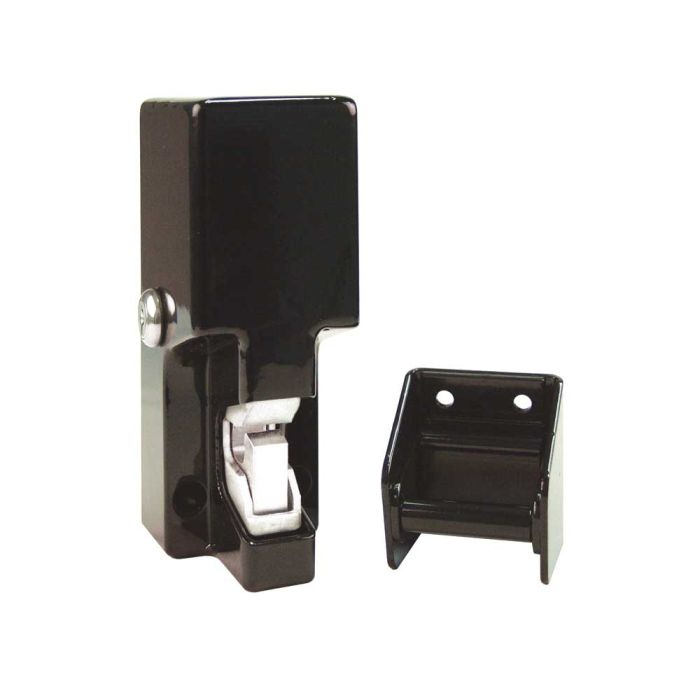

Securitron Gate Lock 12/24VDC Fail Lock

Stock Code:
AASGL1-FLM
Regular Price:
$819.20 (Incl. GST)

Description

Electromechanical Gate Solution Offers One Ton of Holding Power
The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications. The GL1 provides over 900kg of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding Product features vehicle, pedestrian, or stock gate access control.

Features<\strong>

  • 907kg holding force<\li>
  • Operates under preload up to 45kg<\li>
  • Automatic dual voltage - no field adjustment required<\li>
  • Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)<\li>
  • Self-aligning receiver (+/- 12mm horizontally) helps compensate for gate misalignment and sag<\li>
  • Tamper resistant cast housing<\li>
  • Optional latch status monitor<\li>
  • Fail Secure - remains locked when power is cut<\li>
  • Surface mount<\li>

    Specifications<\strong>
  • Holding Force: 907kg<\li>
  • Dimensions: 2-3/4inch L x 7-1/4inch W x 3-1/4inch D<\li>
  • Electrical:<\li>
    -12 Volts Initial (Peak): (~1.0 sec.) @ 870mA - Reduced: 290mA Power Consumption: 3.5 Watts
    -24 Volts Initial (Peak): (~1.0 sec.) @ 720mA - Reduced: 170mA Power Consumption: 4.1 Watts
  • Operating temperature: 50 to +75C<\li>
  • Indoor or outdoor use<\li>
  • Shipping Weight: 2.72kg<\li>

    • Details

    • Finish:
      Black
    • Brand:
      Securitron
    • Please Note:
      This is a non-returnable product. By adding this product to your cart you agree to these terms.
